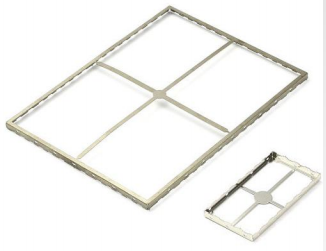

Precision Stamping Frame Grid Assembly in AL5052 Aluminum with Natural Anodizing Finish for Medical Equipment Industry

This precision stamped and formed frame grid assembly is purpose-engineered for medical device enclosure and equipment panel applications requiring lightweight structural support, precise dimensional registration, and a clean, durable surface finish compliant with clinical environment standards.

Manufactured from Aluminum Alloy 5052, offering outstanding corrosion resistance, excellent formability, good weldability, and superior fatigue strength compared to other aluminum alloys in its class.

• Refined open-grid architecture with large outer perimeter frame
• Uniformly distributed tab-and-slot interlocking features along all four edges
• Precision-formed inner cross-member dividers creating stable multi-cell grid structure
• Smaller companion inner tray frame for nested component mounting
• Repeating scalloped edge tab profiles for accurate self-locating assembly alignment
• Secure mechanical interlocking without fasteners

The natural Type II anodizing finish produces a uniform, transparent aluminum oxide layer that significantly enhances corrosion resistance and increases surface hardness.

All components are produced under ISO 13485 certified quality management systems with full dimensional inspection, anodizing thickness verification, and material traceability documentation per production batch.

Customization: Custom grid configurations and frame dimensions are available upon request.
