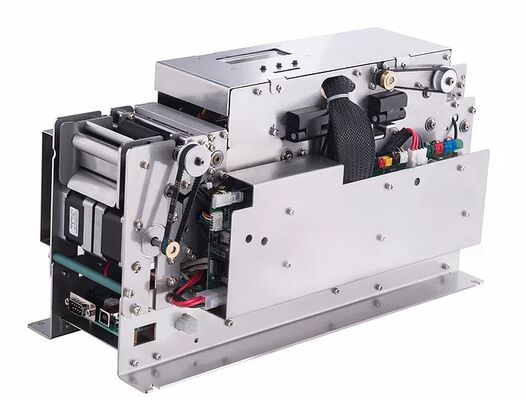

Precision Magnetic Media Ticket Mechanism with Thermal Print Engine and Magnetic Read/Write Head for Modular Maintenance

Brand Name:	OEM
Model Number:	OEM
MOQ:	1
Price:	To be discussed
Payment Terms:	To be discussed
Supply Ability:	To be discussed

Detail Information

Product Description

Detail Information

Place of Origin:

China

Technology:

EMS Assembly

Application:

Bank System

Packaging Details:

Carton/Wood box

Supply Ability:

To be discussed

Product Description

Precision EMS — Magnetic Media Ticket & Document Processing Mechanism

This precision-assembled magnetic media ticket and document processing mechanism is purpose-engineered for self-service kiosk, banking automation, transit ticketing, and point-of-sale terminal applications requiring high-reliability document handling, magnetic stripe reading and writing, and automated ticket issuance in continuous 24/7 operational environments.

Integrated Functional Subsystems

Precision thermal or impact print engine for high-resolution ticket and receipt printing

Magnetic read/write head assembly for accurate magnetic stripe data encoding and verification

Multi-stage motorized document transport system with precision rubber roller drives

Optical sensor arrays for reliable media feeding, positioning, and jam detection

Dedicated document stacking and dispensing module for consistent single-ticket separation

Robust Construction & Connectivity

The robust aluminum alloy base frame and steel sub-panels provide excellent EMI shielding, vibration damping, and precise mechanical alignment of all internal drive and sensing components.

The integrated PCB control module with DB9 and USB interface connectivity enables seamless integration with host system controllers via standard serial communication protocols.

Reliability & Serviceability

Engineered for high mean time between failures (MTBF), the mechanism supports tool-accessible modular maintenance design — allowing rapid field servicing of individual functional modules without full mechanism replacement, significantly reducing total cost of ownership in high-traffic deployment environments.

Quality Assurance

All assemblies are manufactured and tested under ISO 9001 certified quality management systems, with full functional burn-in testing, magnetic read/write performance verification, and print quality validation conducted on every production unit prior to shipment.
