RAL9005 Matte Black Aluminum Tray Panel For Semiconductor Inspection Equipment

RAL9005 Matte Black Aluminum Tray Panel For Semiconductor Inspection Equipment

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Material:
AL5052-H32
Surface Finish:
RAL9005 Painting
Application:
Semiconductor Inspection Equipment
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Highlight:

RAL9005 aluminum tray panel

,

Matte Black aluminum tray panel

,

RAL9005 precision sheet metal components manufacturers

Product Description
Matte Black Aluminum Tray Panel for Semiconductor Inspection Equipment
Product Overview

This precision-fabricated tray panel is manufactured from AL5052 aluminum alloy, a material renowned for its excellent corrosion resistance, superior formability, and dependable strength-to-weight performance. These qualities ensure long-lasting durability and consistent dimensional stability, making the component ideally suited to the precise and demanding conditions of semiconductor inspection systems.

Surface Finish & Protection

The surface is finished with a matte black spray coating that delivers a sleek, non-reflective appearance while providing reliable protection against scratches, oxidation, and contamination. The low-glare matte finish is especially valuable in optical and imaging environments, where minimizing stray light reflections helps maintain measurement accuracy and inspection precision.

Design & Configuration

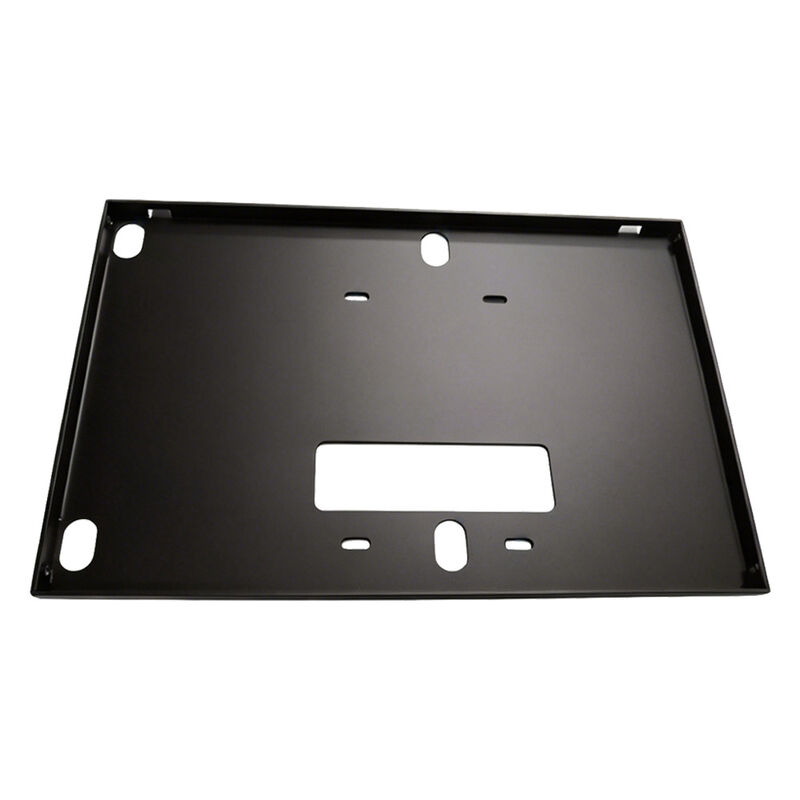

Engineered as a shallow tray-style mounting base, the panel features a flat working surface bordered by folded raised edges that enhance rigidity and define a contained mounting area. The design includes:

  • Central rectangular cutout
  • Slotted openings
  • Keyhole-shaped holes
  • Corner mounting points

These features provide flexible, accurate positioning and secure attachment of internal modules, cabling, and components onto the host equipment.

Manufacturing & Customization

Produced through advanced CNC cutting, precision bending, and surface-finishing processes, this tray panel meets the strict quality and repeatability standards required by the semiconductor industry. It can be fully customized in:

  • Dimensions
  • Finish specifications
  • Cutout configuration
  • Hole layout patterns

This flexibility ensures compatibility with diverse equipment platforms and client specifications.
