Precision Machining & Assembly – Electrical/Mechanical Module

Precision Machining & Assembly – Electrical/Mechanical Module

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Product Description

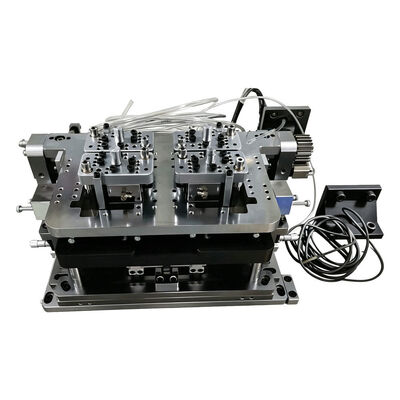

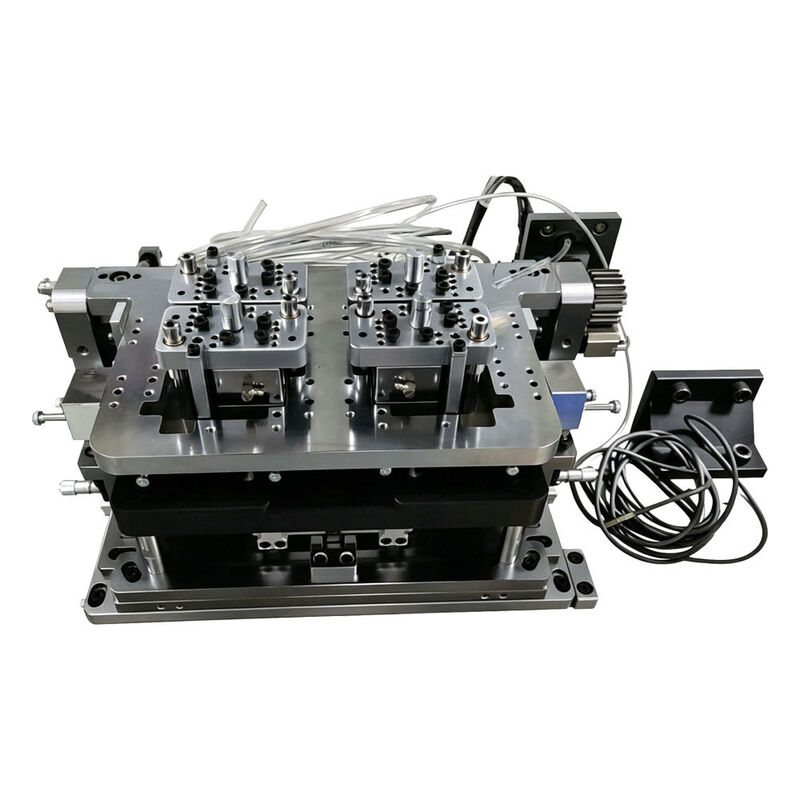

Syris Precision Machining & Assembly – Electrical/Mechanical Module

Syris provides precision CNC machining and full mechanical assembly for this high-precision electrical/mechanical module, combining accurately machined tooling plates, guided motion components, and integrated electrical/pneumatic connections into a complete, ready-to-integrate assembly.

The module is built with precision-machined multi-layer plates, mounted on hardened guide posts and bushings for accurate, repeatable vertical alignment between the upper and lower assemblies. Multiple precision-machined mounting blocks and inserts are integrated into the plate assembly, supporting exact positioning of internal components with tight tolerances.

The unit is equipped with an integrated stepper/servo motor drive on one side, connected via a timing pulley system for precise motion control, along with routed pneumatic tubing and electrical wiring for full system connectivity. A rear-mounted junction bracket organizes cable connections for streamlined integration into the larger equipment system.

Key features include:

  • Precision CNC-machined components — tight tolerances ensuring accurate fit and reliable performance
  • Guided plate assembly — hardened guide posts and bushings for precise, repeatable alignment
  • Integrated motor-driven motion system — accurate positioning via pulley-driven transmission
  • Pneumatic and electrical integration — fully routed tubing and wiring for direct system connectivity
  • Modular design — engineered for straightforward integration into larger automated equipment

Leveraging strong in-house capabilities in precision machining and mechanical-electrical assembly, Syris delivers high-accuracy modules like this one — supporting customers with reliable, precisely engineered components for advanced automated systems.
