Precision Sheet Metal Chassis for Medical Equipment Base

Precision Sheet Metal Chassis for Medical Equipment Base

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Product Description

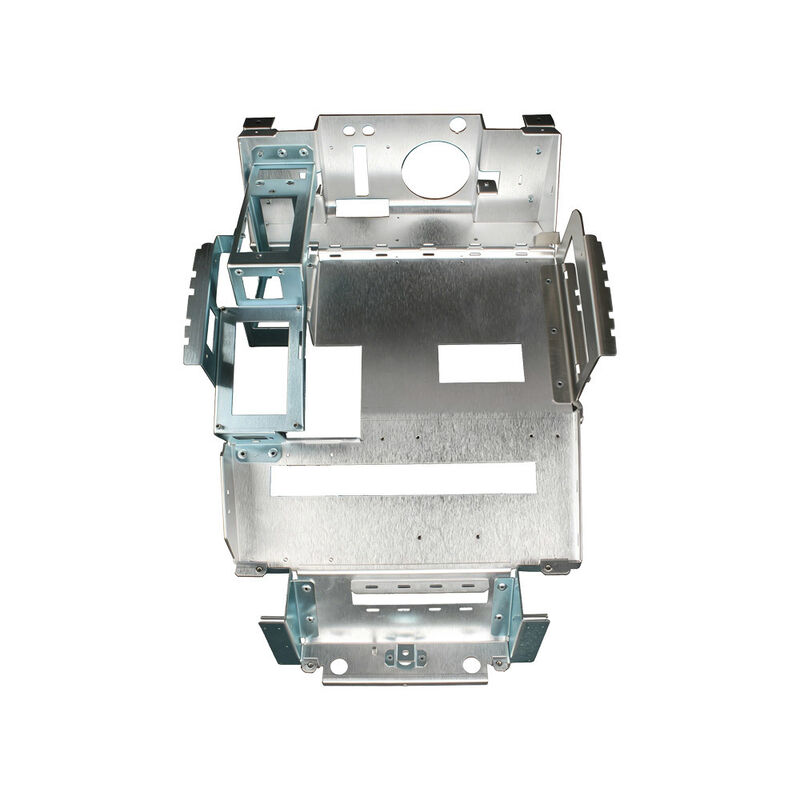

Precision Sheet Metal Chassis for Medical Equipment Base — Manufactured by Syris

Syris presents this precision-fabricated sheet metal chassis, engineered as a structural base assembly for medical equipment applications where dimensional accuracy, cleanliness, and long-term reliability are essential.

Key Features:

  • Material & Finish: Fabricated from galvanized (zinc-plated) steel sheet, providing excellent corrosion resistance, a clean sanitary appearance, and durability suited for medical-grade environments.
  • Precision CNC Manufacturing: Laser-cut and CNC-formed panels with tight-tolerance holes, slots, and cutouts for accurate cable routing, component mounting, and sub-assembly integration.
  • Complex Multi-Bend Construction: The chassis features multiple formed panels and folded flanges, precisely bent and joined (riveted/welded) to create a rigid, box-like enclosure base with high structural integrity.
  • Integrated Sub-Bracket: A secondary bracket module is incorporated on the upper section for mounting additional components such as connectors, switches, or control modules.
  • Functional Cutouts & Access Openings: Circular and rectangular openings are precisely positioned for ventilation, wiring pass-through, sensor placement, and access to internal components.
  • Reinforced Mounting Points: Multiple pre-drilled holes and formed tabs throughout the structure allow secure fastening of internal modules, covers, and the equipment's outer housing.

Typical Applications:
This type of chassis is widely used as the internal support base or frame for medical devices — such as diagnostic equipment, patient monitoring systems, or hospital-grade instrument housings — where it provides a stable foundation for electronic and mechanical components.

Quality Assurance:
Manufactured under strict quality control with full dimensional inspection, this chassis reflects Syris' expertise in precision sheet metal fabrication for the medical device industry, ensuring consistent fit, function, and compliance with demanding industry standards.
