Precision Sheet Metal Card Cage Chassis for High-End Medical Equipment

Precision Sheet Metal Card Cage Chassis for High-End Medical Equipment

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Product Description

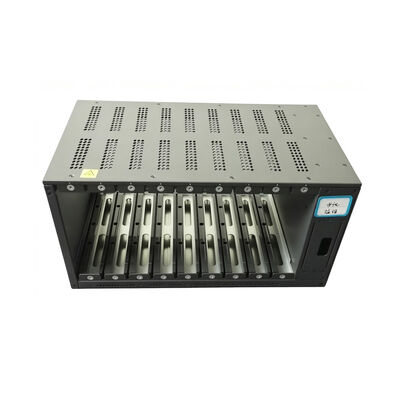

Precision Sheet Metal Card Cage Chassis for High-End Medical Equipment — Manufactured by Syris

Syris presents this precision-fabricated sheet metal card cage enclosure, engineered as a multi-slot module housing for high-end medical equipment where signal integrity, thermal management, and structural precision are critical.

Key Features:

  • Material & Finish: Fabricated from cold-rolled steel/aluminum sheet with a durable gray/black finish, providing EMI shielding and long-term structural stability.
  • Precision Multi-Slot Card Guide System: Internal aluminum card guide rails are precisely aligned and spaced to accept multiple PCB/module cards, ensuring smooth insertion, accurate alignment, and reliable electrical contact with the backplane.
  • High-Density Ventilation: Extensive perforated ventilation patterns on the top panel maximize airflow for effective heat dissipation, keeping sensitive electronic modules within safe operating temperatures during continuous use.
  • Rigid Rack-Mount Frame: A robust welded/riveted steel frame with front mounting flanges supports standard rack installation, ensuring stability and ease of integration into medical device cabinets or system racks.
  • Front Access Panel: Includes a front cover panel with connector/handle cutout for cable routing, indicator access, or module removal.
  • Tight Tolerance Construction: Precision CNC punching and forming ensure consistent slot pitch and card alignment, critical for reliable backplane connectivity in multi-card medical instrumentation systems.

Typical Applications:
This card cage chassis is ideal for high-end medical devices requiring modular electronics architecture, such as diagnostic imaging systems, patient monitoring platforms, laboratory analyzers, or other equipment utilizing multi-card/module-based control and signal processing systems.

Quality Assurance:
Each chassis undergoes rigorous dimensional inspection and fit testing to ensure precise card alignment, structural rigidity, and thermal performance — reflecting Syris' engineering expertise in precision sheet metal fabrication for the medical device industry.
