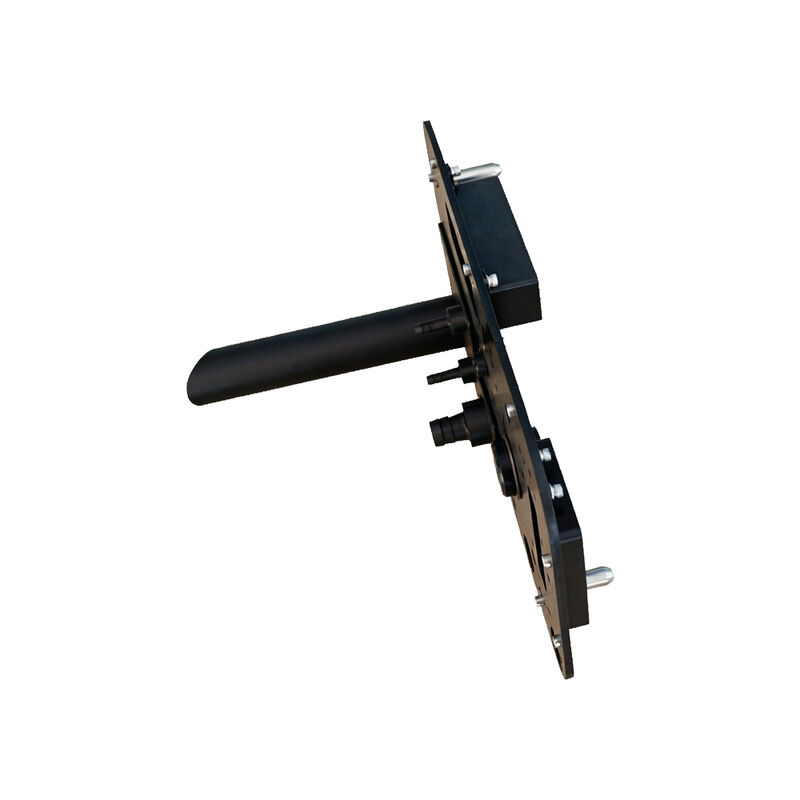

Precision Sheet Metal Mounting Bracket with Cantilever Arm

Precision Sheet Metal Mounting Bracket with Cantilever Arm

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Product Description

Precision Sheet Metal Mounting Bracket with Cantilever Arm — Manufactured by Syris

Syris presents this precision-fabricated sheet metal mounting bracket, featuring an integrated cantilever arm design engineered for suspended or offset equipment mounting applications.

Key Features:

  • Material & Finish: Constructed from precision-formed steel/aluminum sheet with a durable black finish, providing corrosion resistance and a clean, professional appearance.
  • Cantilever Arm Design: A robust extended tubular arm projects from the main mounting plate, allowing equipment to be positioned away from the primary mounting surface — ideal for camera mounts, sensor housings, or antenna installations.
  • Precision CNC Manufacturing: Laser-cut and CNC-formed mounting plates feature tight-tolerance bolt patterns and fastener holes for secure, repeatable installation.
  • Multi-Point Fastening System: Dual mounting plates are joined using multiple bolts, studs, and hex-drive fasteners, ensuring a rigid, vibration-resistant connection capable of supporting cantilevered loads.
  • Adjustable Positioning Hardware: Threaded rod ends and stud fasteners allow for fine adjustment of mounting angle and arm extension during installation.
  • High Load-Bearing Strength: The reinforced plate-and-arm structure is engineered to maintain rigidity and minimize deflection under sustained cantilevered loading.

Typical Applications:
This bracket assembly is well-suited for outdoor pole-mounted or wall-mounted equipment requiring offset positioning, such as surveillance cameras, traffic sensors, communication antennas, or environmental monitoring instruments.

Quality Assurance:
Each bracket undergoes thorough dimensional and load testing to ensure precise fit, secure fastening, and reliable long-term performance — reflecting Syris' expertise in precision sheet metal fabrication for demanding mounting applications.
