Precision OEM Sheet Metal Assembly for High-End Medical Equipment

Precision OEM Sheet Metal Assembly for High-End Medical Equipment — Manufactured by Syris

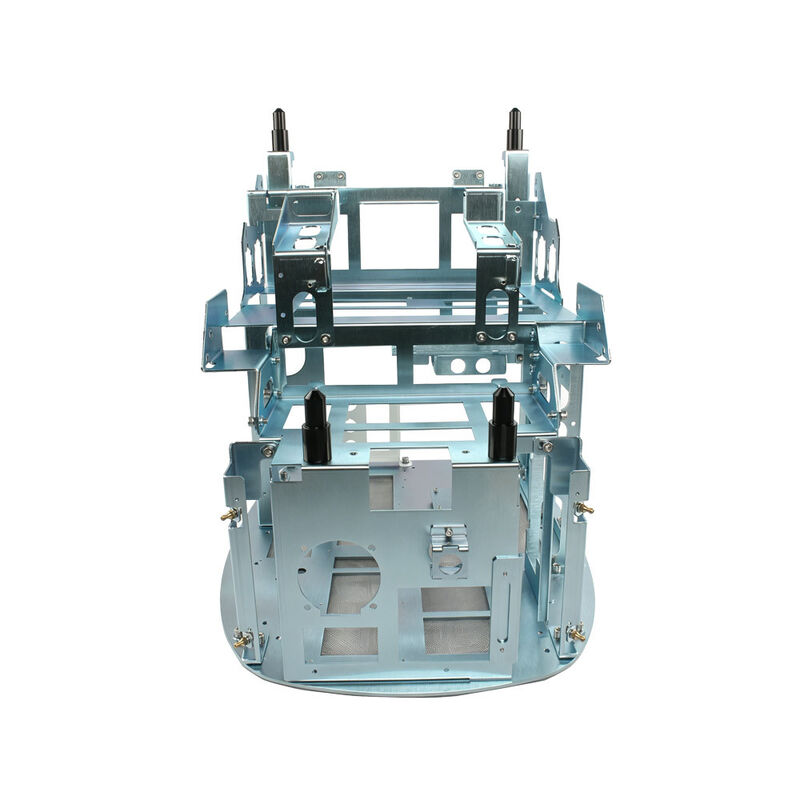

Syris presents this precision-engineered, multi-tier sheet metal assembly, custom OEM-manufactured for high-end medical equipment applications requiring exceptional structural complexity, dimensional accuracy, and assembly precision.

Key Features:

• Material & Finish: Fabricated from zinc-plated (blue/clear passivated) steel sheet, offering superior corrosion resistance, a clean appearance, and long-term durability required for medical-grade equipment.
• Multi-Tier Structural Design: The assembly features a complex, multi-level architecture with vertically stacked frame sections, precisely formed and fastened to create a rigid, integrated support structure.
• High-Precision CNC Fabrication: Laser-cut and CNC-formed panels feature tight-tolerance holes, slots, and profiled cutouts for accurate sub-assembly integration and component mounting.
• Integrated Guide Pins & Locating Posts: Precision-machined vertical guide pins are incorporated at multiple levels to ensure accurate alignment during assembly and consistent positioning of mating components.
• Circular Base Mounting Plate: A large-format formed base plate provides a stable rotational or fixed mounting platform, suited for integration into equipment requiring a defined circular footprint.
• Complex Multi-Bracket Sub-Assembly: Numerous interlocking brackets, standoffs, and reinforcement panels are combined into a single cohesive OEM assembly, reflecting advanced sheet metal engineering and fabrication capability.

Typical Applications:
This type of precision assembly is well-suited for high-end medical imaging or diagnostic systems — such as CT/MRI gantry components, rotational scanning platforms, or other precision instrumentation requiring a rigid, accurately aligned multi-tier support structure.

OEM Manufacturing & Quality Assurance:
As a full OEM manufacturing partner, Syris manages the complete process from precision fabrication through multi-component sub-assembly, with rigorous dimensional inspection at every stage to ensure consistent fit, alignment, and functional performance — reflecting Syris' engineering expertise in complex precision sheet metal solutions for the medical device industry.
