Precision Welded Square Tube Frame Structure

Precision Welded Square Tube Frame Structure — Manufactured by Syris

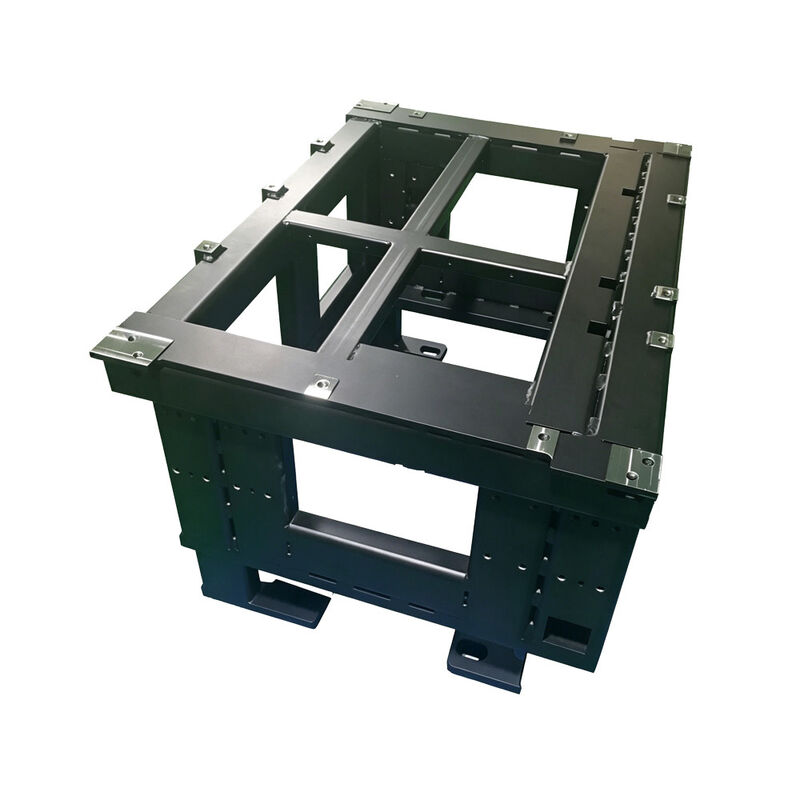

Syris presents this precision-fabricated square tube (box-section) welded frame, engineered as a heavy-duty structural base designed for high load-bearing equipment support and rigid mechanical mounting applications.

Key Features:

• Material & Finish: Constructed from precision-cut square/rectangular steel tubing with a durable black finish, providing high structural strength, corrosion resistance, and long-term mechanical durability.
• Robust Welded Frame Construction: Square tube sections are precisely cut, aligned, and welded to form a rigid three-dimensional lattice frame, delivering superior torsional stiffness and load distribution compared to conventional sheet metal structures.
• Precision CNC Machining & Punching: Tube surfaces feature accurately positioned mounting holes, slots, and cutouts, enabling precise integration with mating components, panels, or accessory brackets.
• Reinforced Corner Gussets: Stainless steel corner brackets and gusset plates are fastened at key structural joints to further enhance rigidity and ensure long-term dimensional stability under load.
• Open Cross-Braced Design: Internal cross-members divide the frame into multiple structural bays, optimizing strength-to-weight ratio while maintaining full accessibility for internal component installation.
• Integrated Base Feet: Formed mounting feet at the base provide stable floor or platform attachment points, ensuring secure installation and load transfer.

Typical Applications:
This precision square tube frame is well-suited for heavy industrial equipment bases, automation system supports, robotic platform structures, or any application requiring a high-strength, rigid structural framework capable of supporting substantial mounted loads.

Quality Assurance:
Every frame undergoes rigorous dimensional inspection and weld quality testing to ensure structural integrity, precise hole alignment, and consistent load-bearing performance — reflecting Syris' engineering expertise in precision square tube fabrication and structural welding.
