Precision Sheet Metal Insulated Enclosure with Fluid Fittings

Precision Sheet Metal Insulated Enclosure with Fluid Fittings — Manufactured by Syris

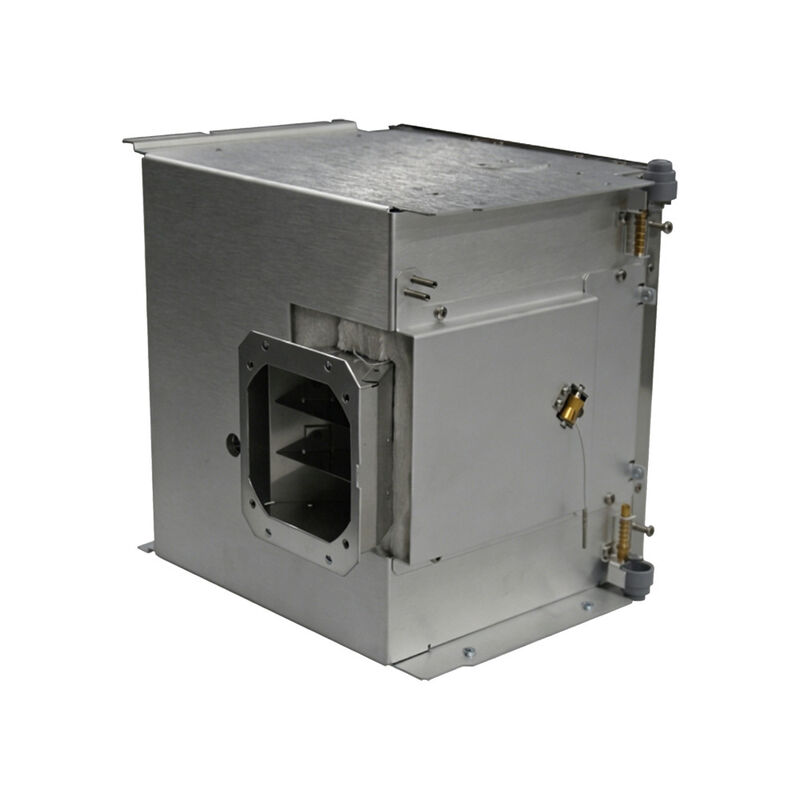

Syris presents this precision-fabricated sheet metal enclosure, engineered as an insulated, sealed housing integrated with brass fluid-line fittings for thermal or fluid-handling equipment applications.

Key Features:

• Material & Finish: Constructed from brushed stainless/aluminized steel sheet, offering excellent corrosion resistance, thermal stability, and a clean, durable surface finish suited for demanding operating environments.
• Integrated Thermal Insulation: The enclosure incorporates internal insulation lining around the duct opening, reducing heat transfer and improving energy efficiency during operation.
• Precision Ducted Opening: A precisely formed rectangular flanged port with a beveled internal baffle allows for controlled airflow or ducting connection, secured with a multi-hole mounting flange for airtight sealing.
• Integrated Brass Fluid Fittings: Factory-installed brass compression fittings and copper tubing stubs are pre-mounted through the housing wall, enabling direct connection to refrigerant, water, or gas supply lines.
• Sealed Cable/Conduit Glands: Gray strain-relief grommets are fitted at the enclosure corners for secure, sealed routing of electrical wiring or control cables into the housing interior.
• Precision CNC Manufacturing: Laser-cut and CNC-formed panels ensure tight-tolerance seams, consistent flange alignment, and a rigid, leak-resistant box structure.

Typical Applications:
This insulated enclosure is well-suited for HVAC equipment, heat pump units, refrigeration systems, or other thermal management devices requiring integrated ducting, fluid line connections, and sealed electrical pass-throughs within a single precision-built housing.

Quality Assurance:
Every enclosure undergoes rigorous dimensional and seal inspection to ensure airtight performance, secure fitting installation, and long-term reliability — reflecting Syris' expertise in precision sheet metal fabrication for integrated thermal and fluid-handling systems.
