Precision CNC Machined U-Frame Motor Mount Bracket

Syris Precision CNC Machined U-Frame Motor Mount Bracket

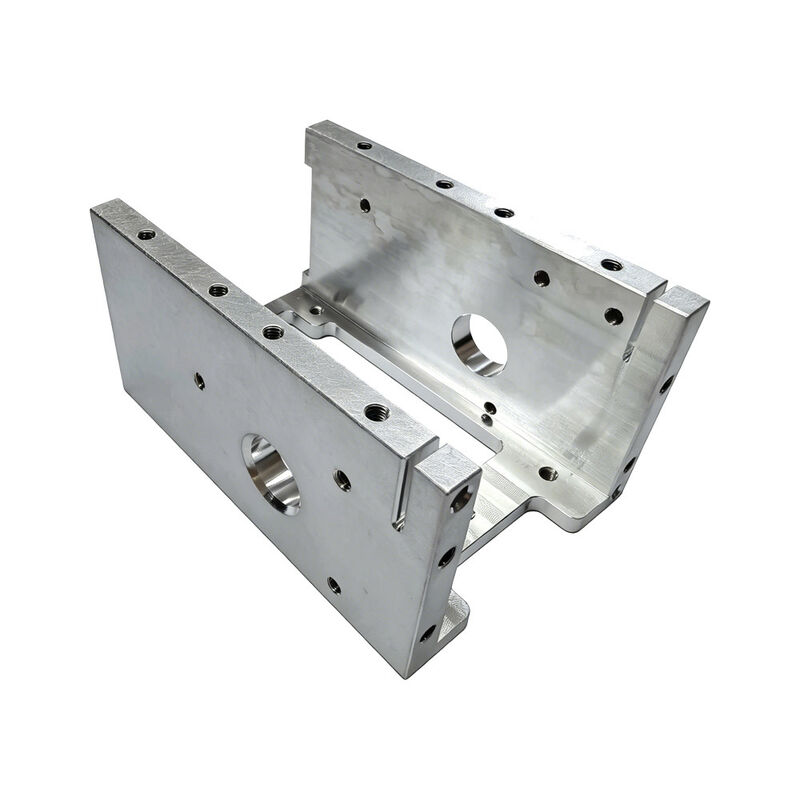

Syris precision-manufactures this aluminum U-frame bracket using multi-axis CNC machining, featuring dual parallel vertical walls with aligned precision bores, engineered as a rigid support housing for motor, bearing, or shaft-mounted assemblies.

Key Features:

• Dual Parallel Wall Architecture: Two precisely machined vertical side walls connected by a solid base, forming a rigid U-channel structure that provides balanced dual-point support for a shaft or rotating assembly.
• Aligned Precision Bores: Large, accurately bored through-holes on each vertical wall, machined co-axially to ensure precise shaft or bearing alignment across both mounting points.
• Dense Threaded Hole Pattern: Extensive array of precisely tapped mounting holes across both walls and the base, providing flexible multi-point attachment for covers, sensors, or adjoining components.
• Stepped Base Foot: Machined base extension with a mounting foot, providing an additional independent attachment point for securing the entire assembly to a larger frame or platform.
• Reinforced Corner Transitions: Smoothly blended fillets at wall-to-base junctions, minimizing stress concentration and enhancing structural rigidity under load.
• Fine Machined Surface Finish: Bright, consistent surface finish throughout, reflecting tight process control and dimensional accuracy across all bore and hole features.

Manufacturing Capabilities Demonstrated:

• Multi-axis CNC milling of complex dual-wall U-frame geometry
• Precision co-axial boring across separated wall sections
• Dense multi-hole tapping across multiple planes
• Structural fillet and transition machining
• Tight positional tolerance for shaft/bearing alignment

Applications:
Well-suited for motor mounting frames, gearbox support housings, robotic arm joint structures, or industrial automation sub-assemblies requiring precise dual-point shaft alignment and rigid structural support.
