Precision CNC Machined Panel With Multi Zone Hole Pattern

Precision CNC Machined Panel With Multi Zone Hole Pattern

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Highlight:

Precision custom milled parts

,

Multi Zone Hole Pattern custom milled parts

,

Precision mill components

Product Description

Precision CNC Machined Panel with Multi-Zone Hole Pattern – Syris Manufacturing

Product Overview

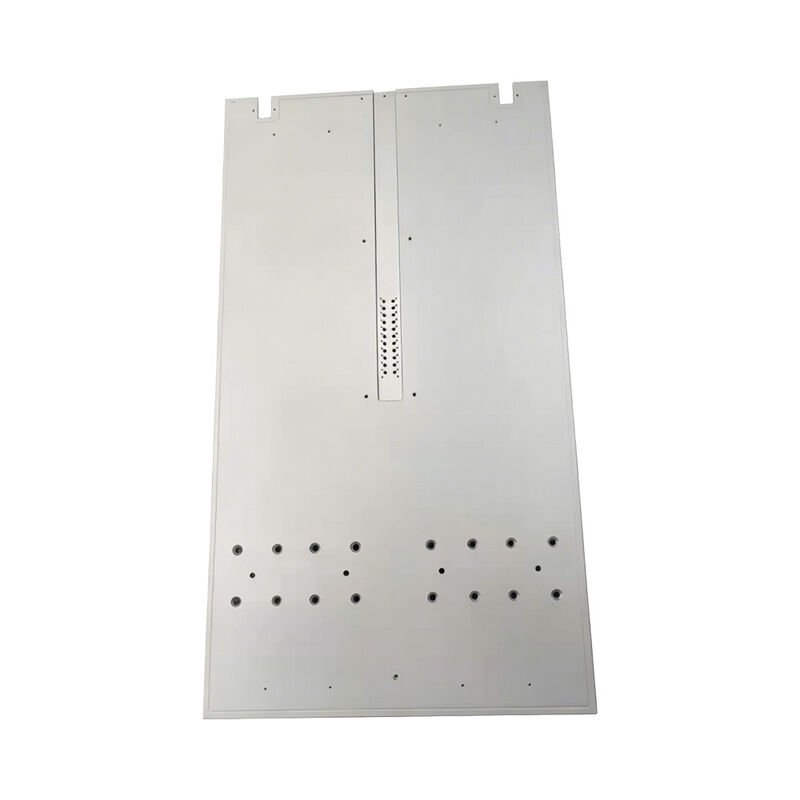

This precision CNC-machined component, produced by Syris, is a large flat aluminum panel featuring a central raised rib, a dense array of drilled ventilation or fastener holes, and multiple grouped mounting hole patterns arranged across two functional zones. The clean, uniform white/satin finish and organized hole layout reflect precise multi-point drilling across an extended flat surface.

Key Features

  • Central Raised Rib Feature — A narrow, elevated strip runs down the panel's centerline, incorporating a dense grid of small precision-drilled holes, likely for ventilation, wiring pass-through, or light diffusion.
  • Dual Grouped Mounting Patterns — Two mirrored clusters of precisely spaced mounting holes near the lower section of the panel provide organized attachment points for internal components or brackets.
  • Notched Top Edge Cutouts — Rectangular notches machined into the top edge allow for hanging, latch engagement, or alignment with a mating frame.
  • Consistent Hole Spacing Accuracy — Uniform pitch and alignment across dozens of drilled holes demonstrate tight positional tolerance over a large-format part.
  • Large-Format Flat Panel — The extended, uniform flat surface maintains consistent thickness and flatness across its full length, critical for panel-style enclosure applications.
  • Clean Satin/White Finish — A smooth, even surface finish provides a clean cosmetic appearance suitable for a visible interior or exterior panel.

Applications

Suited for LED lighting fixture back panels, equipment rack panels, appliance interior panels, or other large-format sheet components requiring dense, precisely located hole patterns across multiple functional zones.

Manufacturing Capability

This part demonstrates Syris's capability in precision large-format panel machining — combining accurate multi-point drilling, edge notching, and rib feature milling to produce dimensionally consistent flat panels for lighting, appliance, or enclosure applications.
