Custom Fabricated Component Precision Sheet Metal Panel With Perforated Vents

Precision Sheet Metal Panel with Perforated Vents — Custom-Fabricated Component

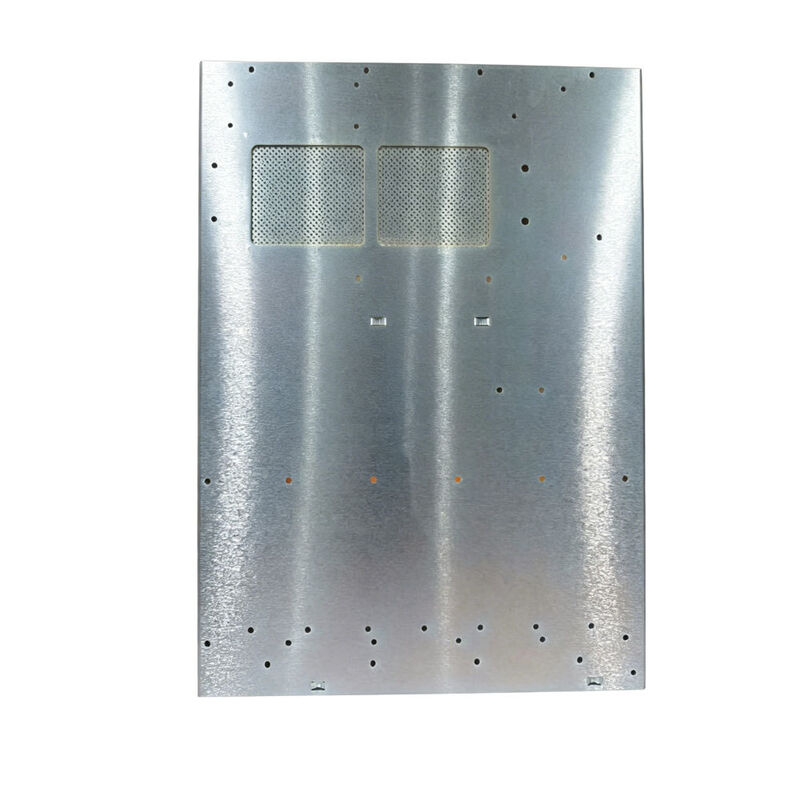

This precision-engineered sheet metal panel is manufactured by Syris using high-precision stamping and forming processes. The part features a galvanized/zinc-coated steel construction with a large flat panel body incorporating two rectangular fine-mesh perforated vent sections near the top edge for ventilation or acoustic/EMI shielding purposes. Multiple rows of precisely positioned mounting and clearance holes of varying diameters are distributed across the panel for assembly integration, while small stamped locating tabs along the vertical centerline and bottom edge provide additional positioning and retention features.

Key Features

• High-precision stamping and hole-punching for tight dimensional accuracy
• Galvanized/zinc-coated surface finish for corrosion resistance
• Dual fine-mesh perforated vent panels for airflow, ventilation, or shielding
• Multiple hole patterns of varying sizes for flexible mounting and assembly
• Integrated stamped locating tabs for precise positioning during installation
• Consistent, repeatable quality suited for high-volume OEM production

Specifications

• Material: Galvanized/zinc-coated sheet steel
• Process: Precision stamping, perforating, and forming
• Surface Finish: Zinc-coated (galvanized) finish
• Feature Design: Dual perforated mesh vent sections, multi-pattern mounting holes, stamped locating tabs
• Application: Internal component for OEM equipment enclosures
• Manufacturer: Syris
• Quality Control: Dimensional inspection to OEM tolerance requirements

Applications
Designed for integration into equipment enclosures or housings requiring internal ventilation and precise multi-point mounting, this panel supports airflow management through its perforated vent sections while providing a structurally rigid base for component assembly and cable/hardware routing.
