Tapered Structural Duct Chute Component Precision Formed Sheet Metal Channel Bracket

Precision Formed Sheet Metal Channel Bracket — Tapered Structural Duct/Chute Component

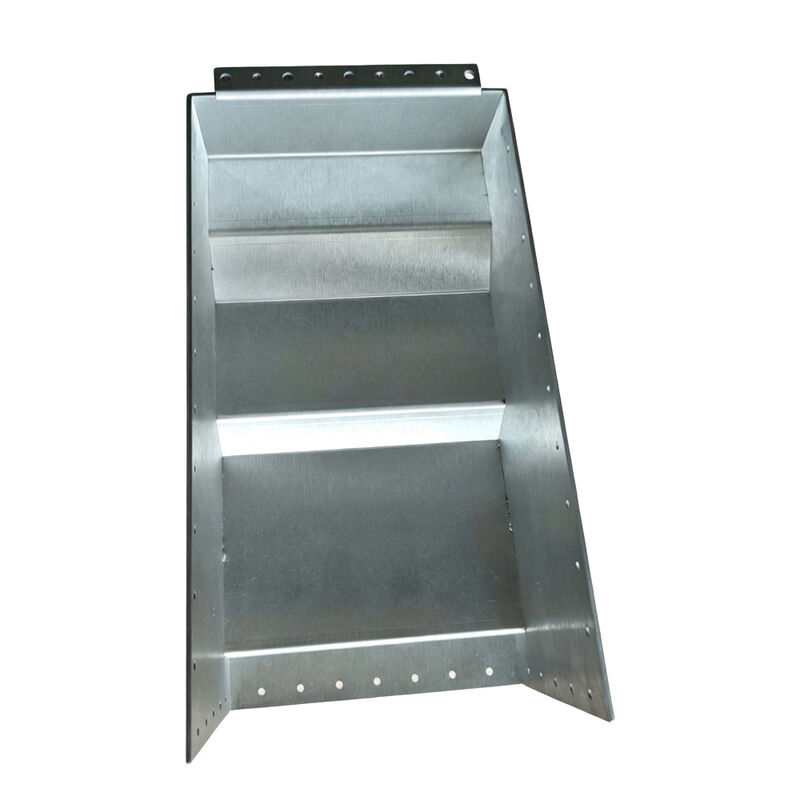

This precision-engineered sheet metal component is manufactured by Syris using multi-bend forming and stamping processes to create a tapered, U-shaped channel structure. The part features a galvanized metal body with two folded side walls and a base panel, forming a rigid trough-style profile that narrows from a wider top opening to a narrower base. A mounting flange with a row of evenly spaced holes runs along the top edge, while additional hole patterns line both side walls and the base, enabling secure multi-point fastening. Horizontal joint lines across the panel faces indicate a multi-piece welded or riveted assembly for added structural strength.

Key Features

• Precision multi-bend forming for accurate tapered channel geometry
• Galvanized surface finish for corrosion resistance and durability
• Reinforced U-shaped profile providing high structural rigidity
• Multiple hole patterns along flanges and walls for versatile mounting options
• Top mounting flange for secure attachment to adjacent structures or housings
• Multi-piece assembly construction suited for demanding structural applications

Specifications

• Material: Galvanized sheet steel
• Process: Precision forming, bending, punching, and multi-piece assembly
• Surface Finish: Galvanized (zinc-coated) finish
• Feature Design: Tapered U-channel profile with top mounting flange and multi-point hole patterns
• Application: Structural duct/chute or support channel component
• Manufacturer: Syris
• Quality Control: Dimensional inspection to OEM tolerance requirements

Applications
Designed for use as a structural channel, duct, or chute component, this part provides a rigid, corrosion-resistant pathway or support structure suited for equipment housings, material handling systems, or structural framing applications requiring precise geometry and secure multi-point mounting.
