4 Channel Battery Charger Front Panel Precision Sheet Metal Enclosure Panel

4-Channel Battery Charger Front Panel — Precision Sheet Metal Enclosure Panel

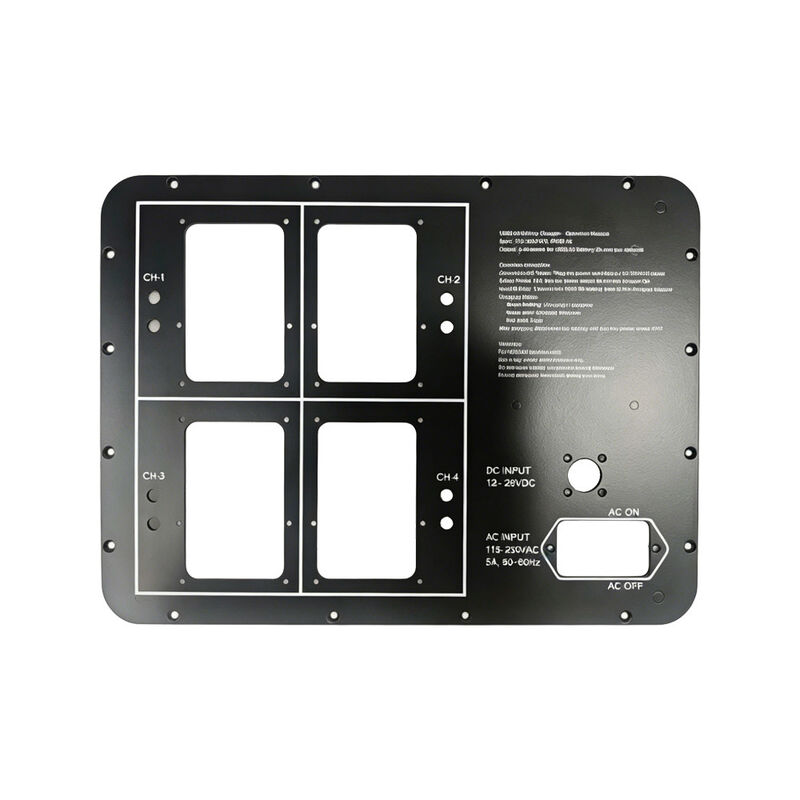

This precision-engineered sheet metal front panel is manufactured by Syris for a 4-channel battery charging system. Fabricated from precision-cut and formed metal with a durable matte black finish, the panel features four clearly delineated charging bays (CH-1 through CH-4), each with a large rectangular battery-slot cutout, dual LED indicator holes, and a surrounding perimeter frame for secure module mounting. The right-hand section houses printed operating instructions and safety information, a circular DC input connector cutout, and a hexagonal AC input module cutout with ON/OFF switch labeling, all finished with permanent white silk-screened text and graphics for clear user guidance.

Key Features

• Precision-cut and formed sheet metal construction with durable matte black finish
• Four dedicated rectangular charging bay cutouts with precise alignment for battery modules
• Permanent silk-screened text and graphics for operating instructions and labeling
• Integrated cutouts for DC input connector and AC input module with switch
• Rounded-corner panel profile with perimeter mounting holes for enclosure assembly
• Tight-tolerance hole and cutout patterns ensuring accurate fit with internal charging components

Specifications

• Material: Precision sheet metal (steel/aluminum)
• Process: Precision cutting, punching, forming, and surface coating
• Surface Finish: Matte black coating with white silk-screen printing
• Feature Design: Four-bay charger cutout layout, LED indicator holes, DC/AC connector openings
• Application: Front panel for 4-channel battery charger system
• Manufacturer: Syris
• Quality Control: Dimensional inspection to OEM tolerance requirements

Applications
Designed as the user-facing front panel for a multi-channel battery charging system, this component integrates connector interfaces, status indicators, and control elements into a single precision-fabricated assembly, supporting reliable operation and clear usability for battery charging equipment.
