Angled Instrument Panel Pair Precision Formed Sheet Metal Control Panel Trays

Precision Formed Sheet Metal Control Panel Trays — Angled Instrument Panel Pair

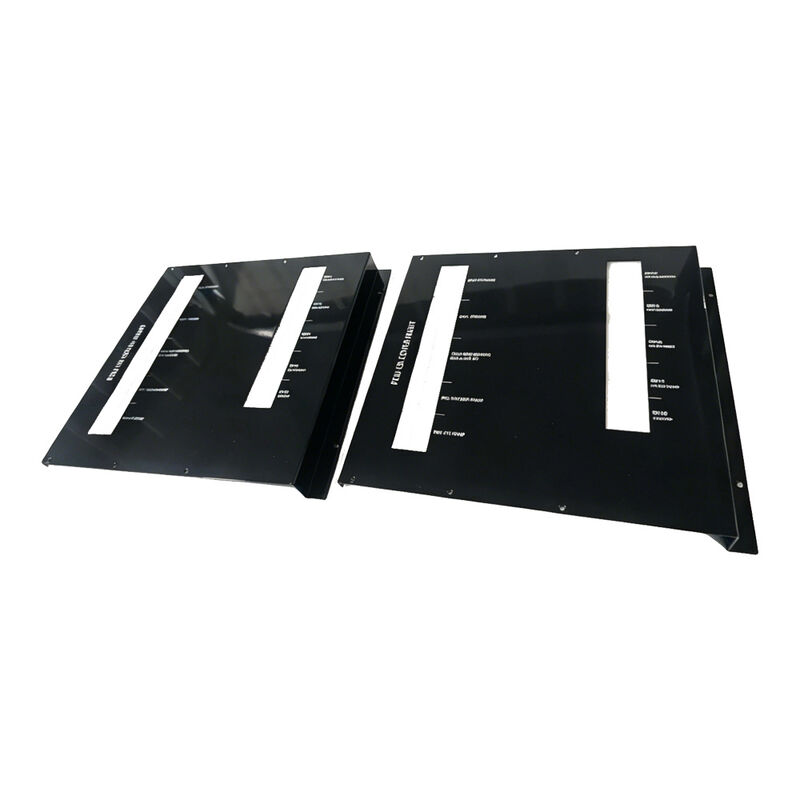

This precision-engineered pair of sheet metal trays is manufactured by Syris using precision cutting, forming, and coating processes. Each part features an angled, folded panel geometry with a black powder-coated or painted finish, incorporating two parallel labeled information strips with white silk-screened text for equipment identification and specification data. Formed side flanges along the panel edges provide structural rigidity, while mounting holes along the perimeter enable secure installation into an equipment housing or frame.

Key Features

• Precision cutting and multi-bend forming for accurate angled panel geometry
• Durable black coated finish for corrosion resistance and clean appearance
• Permanent white silk-screened labeling strips for equipment data and identification
• Formed edge flanges providing added structural strength and rigidity
• Perimeter mounting holes for secure, repeatable installation
• Matched-pair design suited for symmetric or dual-unit equipment configurations

Specifications

• Material: Precision sheet metal (steel/aluminum)
• Process: Precision cutting, forming, and coating
• Surface Finish: Black powder coat / painted finish with silk-screen printing
• Feature Design: Angled panel with folded edge flanges and dual labeling strips
• Application: Control or information panel tray for equipment housings
• Manufacturer: Syris
• Quality Control: Dimensional inspection to OEM tolerance requirements

Applications
Designed as angled control or information panel components, these trays provide labeled interface surfaces for equipment identification and specifications, suited for installation into instrument housings, control cabinets, or equipment consoles requiring clear, durable labeling and secure structural mounting.
