Structural Door Panel Frame Precision Formed Sheet Metal Frame Assembly

Precision Formed Sheet Metal Frame Assembly — Structural Door/Panel Frame

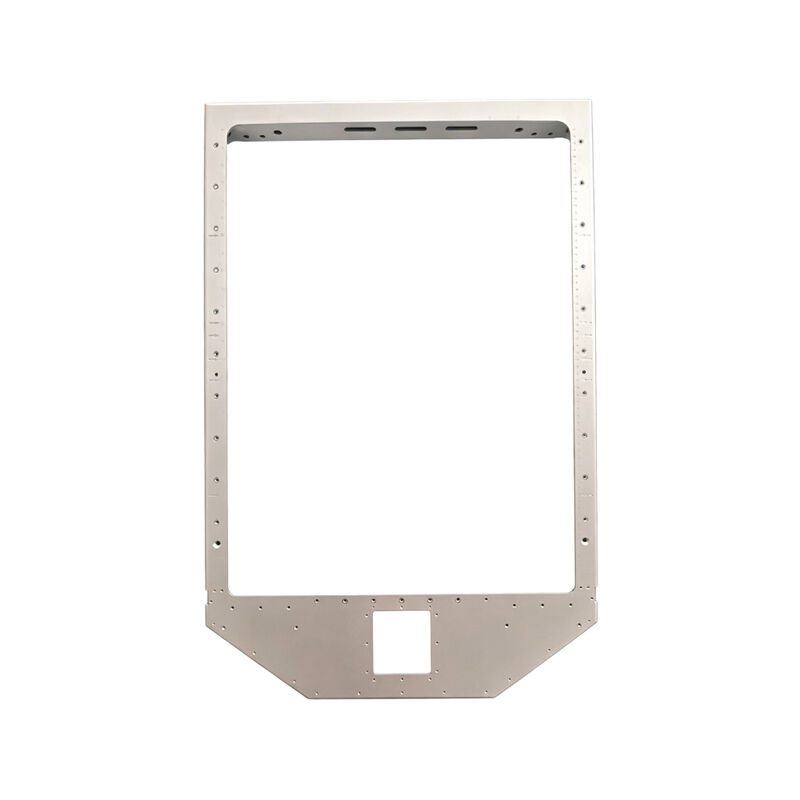

This precision-engineered sheet metal frame is manufactured by Syris using precision cutting, forming, and multi-piece assembly processes to create a large open rectangular frame structure. Fabricated from brushed aluminum, the part features dense rows of mounting holes running along both vertical side rails for uniform attachment of adjacent panels or components, a formed top cross-member with elongated slot cutouts, and a shaped bottom base section incorporating a square access cutout along with additional mounting hole patterns.

Key Features

• Precision cutting and multi-bend forming for accurate large-frame geometry
• Brushed aluminum finish for lightweight strength and corrosion resistance
• Dense, evenly spaced mounting hole rows along both vertical side rails
• Formed top cross-member with elongated slot cutouts for ventilation or fastening
• Contoured bottom base section with square access cutout and multi-point mounting holes
• Rigid open-frame design suited for door, panel, or structural enclosure applications

Specifications

• Material: Brushed aluminum sheet
• Process: Precision cutting, forming, punching, and multi-piece assembly
• Surface Finish: Brushed satin finish
• Feature Design: Large open rectangular frame with slotted top member and contoured base cutout
• Application: Structural frame for door, access panel, or equipment enclosure
• Manufacturer: Syris
• Quality Control: Dimensional inspection to OEM tolerance requirements

Applications
Designed as a structural door or panel frame, this component provides a rigid mounting perimeter for panel installation, supporting equipment enclosures, cabinet doors, or access structures requiring precise multi-point fastening and integrated ventilation or access features.
