SUS316 Stainless Steel With Electropolishing Finish Precision CNC Machined Linkage Arm

Brand Name:	OEM
Model Number:	OEM
MOQ:	1
Price:	To be discussed
Payment Terms:	To be discussed
Supply Ability:	To be discussed

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

SUS316 Stainless Steel

Surface Finish:

Electropolished, Ra <0.4μm

Application:

Food Tech Industry

Corrosion Resistance:

Chloride Pitting, Crevice Corrosion

Surface Treatment:

Electropolishing

Compliance Standards:

FDA, EU 1935/2004, 3-A Sanitary

Packaging Details:

Carton/Wood box

Supply Ability:

To be discussed

Highlight:

SUS316 linkage arm

Stainless Steel linkage arm

Precision custom cnc mill

Product Description

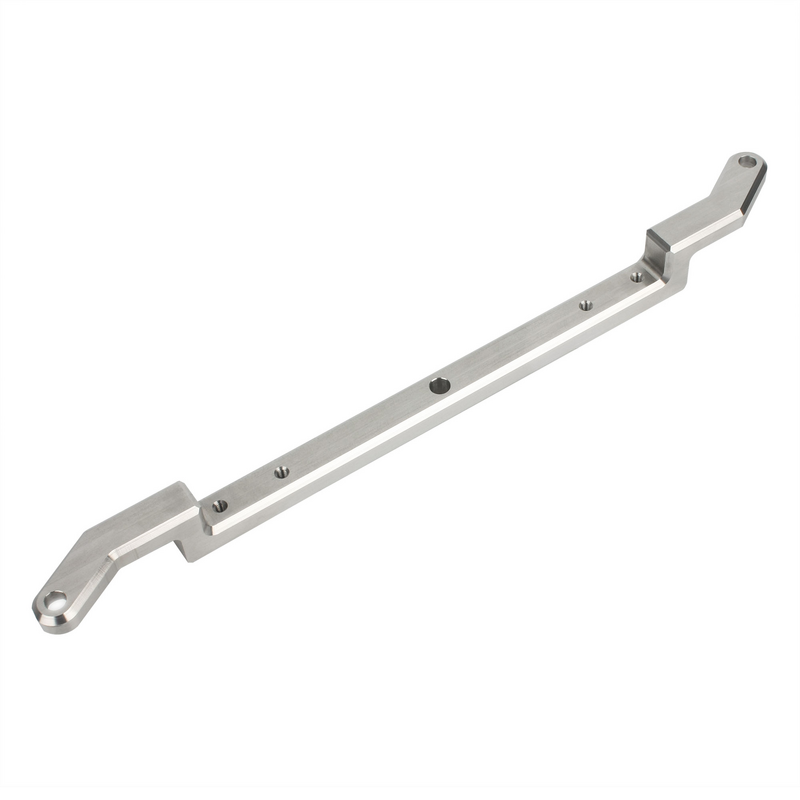

Precision CNC Machined Linkage Arm — SUS316 Stainless Steel with Electropolishing Finish

This precision CNC machined elongated linkage arm is purpose-engineered for food processing machinery applications where precise mechanical actuation, structural rigidity, and uncompromising hygienic performance are essential.

Material & Corrosion Resistance

Manufactured from SUS316 stainless steel, the molybdenum-alloyed composition delivers superior resistance to chloride pitting, crevice corrosion, and chemical attack compared to standard SUS304. This makes it ideally suited for food machinery components continuously exposed to saline rinses, acidic food media, alkaline detergents, and repeated high-temperature steam sterilization cycles.

Design & Precision Engineering

Slender yet rigid bar profile with stepped offset end brackets
Precision-drilled pivot holes for accurate mechanical linkage articulation
Centrally distributed series of threaded and through-holes for auxiliary component mounting and positional adjustment
Chamfered transition shoulders that eliminate stress concentration points under cyclic loading
All geometric features precision CNC milled to dimensional tolerances within ±0.005mm

Surface Finish & Sanitary Performance

Each component undergoes professional electropolishing treatment, an electrochemical process that micro-levels the stainless steel surface to achieve Ra values below 0.4μm. This process removes free iron particles, eliminates micro-crevices, and significantly reinforces the passive chromium oxide layer — producing a mirror-bright, bacteria-resistant surface.

Compliance Standards	FDA, EU 1935/2004, and 3-A Sanitary Standards
Surface Roughness	Ra values below 0.4μm
Dimensional Tolerance	Within ±0.005mm
Material	SUS316 Stainless Steel

All components are produced under ISO 9001 certified quality systems with full CMM inspection, surface roughness verification, and material certification per batch.
