Precision Multi-Cavity Carrier Fixture

Syris Precision Multi-Cavity Carrier Fixture

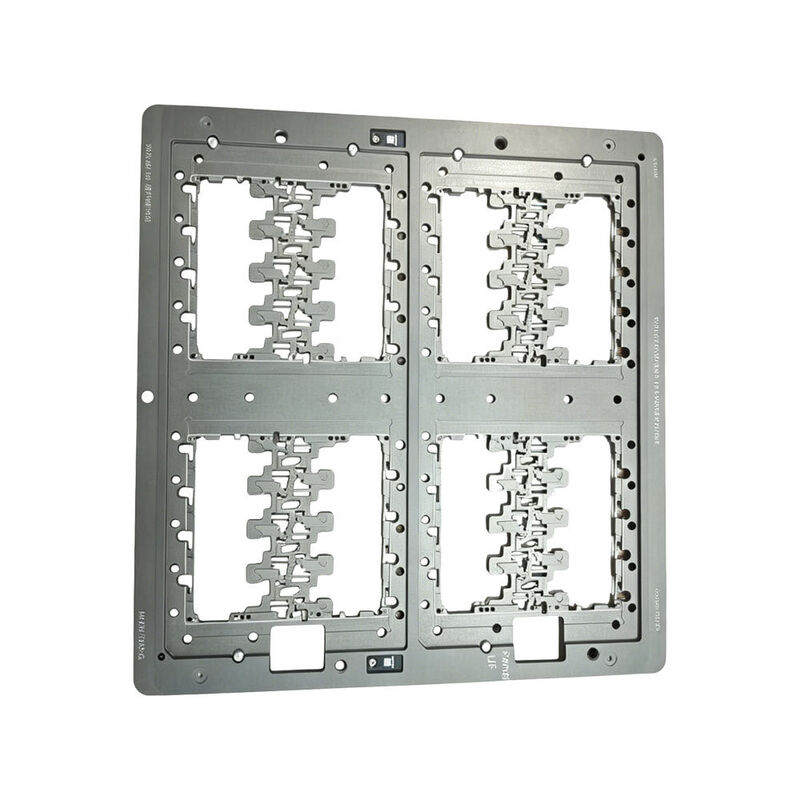

Manufactured by Syris, this precision carrier fixture is CNC-machined from AL7075 high-strength aluminum alloy and finished with prototype-grade anodizing, designed for precision handling and alignment of electronic components in a multi-unit array configuration.

Key Features:

• Material: AL7075 aerospace-grade aluminum alloy, offering superior strength-to-weight ratio, fatigue resistance, and dimensional stability compared to standard aluminum grades
• Surface Treatment: Prototype-run anodized finish providing enhanced surface hardness, wear resistance, and corrosion protection while maintaining tight dimensional tolerances
• Design: Symmetrical 2x2 multi-cavity layout, each cavity featuring intricate comb-tooth/finger structures for precise component nesting, alignment, and contact separation
• Precision Features: Dense perimeter pattern of dowel and mounting holes around each cavity ensures accurate, repeatable positioning and secure clamping across all four stations
• Construction: Single-piece machined plate with integrated reference holes, cutout windows, and mounting bosses for seamless integration into automated handling or test equipment
• Application: Suitable as a carrier/alignment fixture for electronic component testing, burn-in, or assembly processes requiring simultaneous, repeatable handling of multiple units

Manufacturing Capabilities:
Syris specializes in precision CNC machining of high-strength aluminum alloys (AL7075/AL6061) with prototype and production anodizing services, delivering complex multi-cavity fixtures with tight tolerances for electronics testing and handling applications.
