Precision Turned Shaft CNC Machined Control Lever Arm Milling Parts

Precision Turned Shaft CNC Machined Control Lever Arm Milling Parts

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Highlight:

Precision Milling Parts

,

Multi axis Milling Parts

,

CNC Machined control lever arm

Product Description

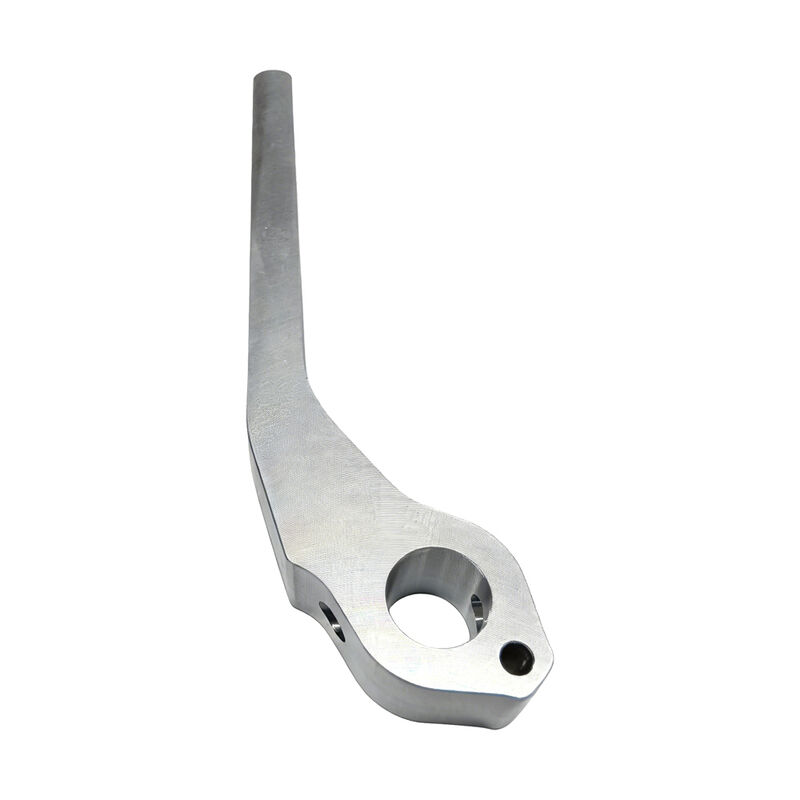

Syris Precision CNC Machined Control Lever Arm

Syris precision-manufactures this aluminum control lever arm using multi-axis CNC machining, engineered to convert linear or rotational input into precise mechanical actuation for control or linkage applications.

Key Features:

  • Precision Turned Shaft: Long, cylindrical shaft section machined to a tight-tolerance diameter and fine surface finish, providing a smooth interface for handle attachment, pivot engagement, or linkage connection.
  • Contoured Transition Body: Smoothly blended, ergonomically curved transition from the round shaft to the wider mounting boss, minimizing stress concentration while maintaining mechanical strength.
  • Precision-Bored Pivot Hole: Large, accurately bored and reamed central hole providing a precise bearing or shaft interface for controlled rotational movement.
  • Secondary Mounting/Locating Holes: Additional smaller drilled holes positioned near the pivot bore for secondary linkage attachment, detent pin engagement, or rotational position sensing.
  • Fine Machined Surface Finish: Smooth, bright surface finish across the turned shaft and milled body, ensuring low-friction operation and corrosion resistance.
  • Tight Dimensional Tolerances: Critical bore diameter, hole positioning, and shaft concentricity held to close tolerances for accurate, repeatable mechanical function.

Manufacturing Capabilities Demonstrated:

  • Multi-axis CNC turning and milling in combined operations
  • Precision boring and reaming for bearing/pivot interfaces
  • Contoured profile milling with smooth blended transitions
  • Accurate secondary hole drilling for linkage integration
  • Fine surface finishing for functional and cosmetic quality

Applications:
Well-suited for automotive shift levers, throttle/control linkage arms, valve actuation levers, or industrial machinery control arms requiring precise pivot action and reliable mechanical linkage.
