OEM Precision CNC Machined Manifold Mounting Block CNC Milling Parts

OEM Precision CNC Machined Manifold Mounting Block CNC Milling Parts

Brand Name: OEM
Model Number: OEM
MOQ: 1
Price: To be discussed
Payment Terms: To be discussed
Supply Ability: To be discussed
Detail Information
Place of Origin:
China
Packaging Details:
Carton/Wood box
Supply Ability:
To be discussed
Highlight:

OEM manifold mounting block

,

Precision manifold mounting block

,

Precision cnc milling parts

Product Description

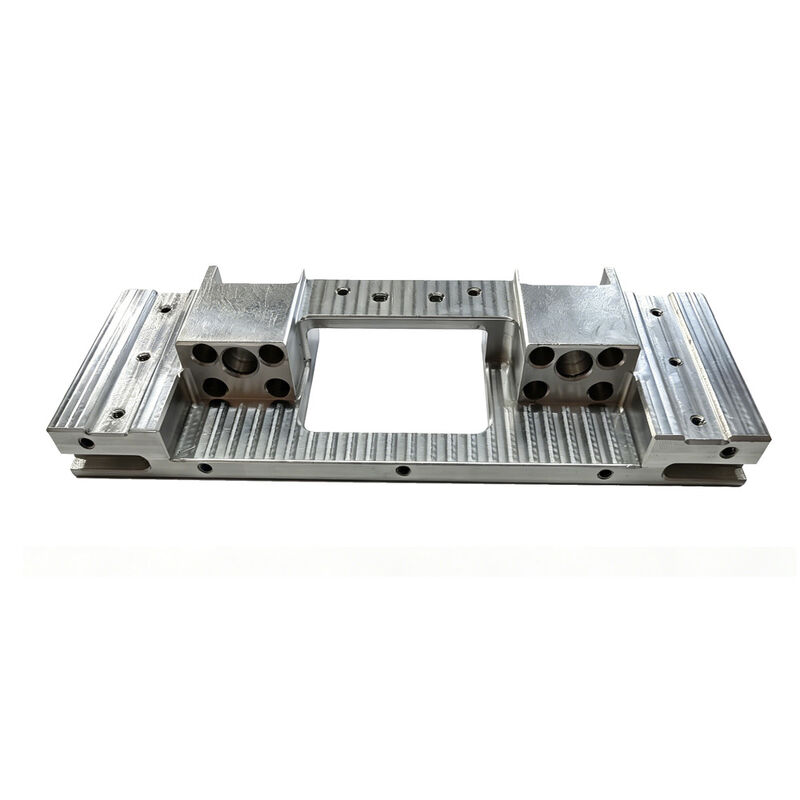

Syris Precision CNC Machined Manifold Mounting Block

Syris precision-manufactures this aluminum billet component using multi-axis CNC machining, combining structural mounting features with integrated multi-port fluid or pneumatic channel clusters.

Key Features:

  • Symmetric Dual-Block Architecture: Precision-milled twin end blocks joined by a central bridge span, providing a wide, balanced footprint for stable multi-point mounting.
  • Multi-Port Drilled Clusters: Two symmetric clusters of four precisely bored holes on each end block, arranged in a compact quad pattern — configured for fluid manifold porting, pneumatic distribution, or multi-pin connector interfacing.
  • Central Through-Cavity: Large, precisely milled rectangular passage through the center bridge section, providing clearance for cable/hose routing or interfacing with an adjacent component.
  • Fine-Pitch Ribbed Surface: Machined parallel ribbing across the top and bottom bridge sections, increasing structural stiffness while reducing overall part weight.
  • Precision Bolt Hole Pattern: Accurately drilled mounting holes running along the top ribbed surface for secure attachment to a mating structure or cover plate.
  • T-Slot Style Base Rails: Machined slotted rail features along the base edges, enabling adjustable or sliding mounting within a larger frame or fixture system.
  • Fine Machined Surface Finish: Bright, consistent surface finish across all faces, reflecting tight process control and dimensional accuracy.

Manufacturing Capabilities Demonstrated:

  • Multi-axis CNC milling from solid billet stock
  • Precision multi-hole boring in tight cluster patterns
  • Large-cavity through-passage machining
  • Fine-pitch rib/stiffener machining
  • T-slot/rail feature machining for modular mounting

Applications:
Well-suited for hydraulic/pneumatic manifold blocks, multi-channel fluid distribution housings, battery/motor cooling interface blocks, or precision fixture mounting bases requiring integrated multi-port channels and rigid structural support.
