Tight Dimensional Tolerances Precision CNC Machined Lightweight Structural Bracket

Syris Precision CNC Machined Lightweight Structural Bracket

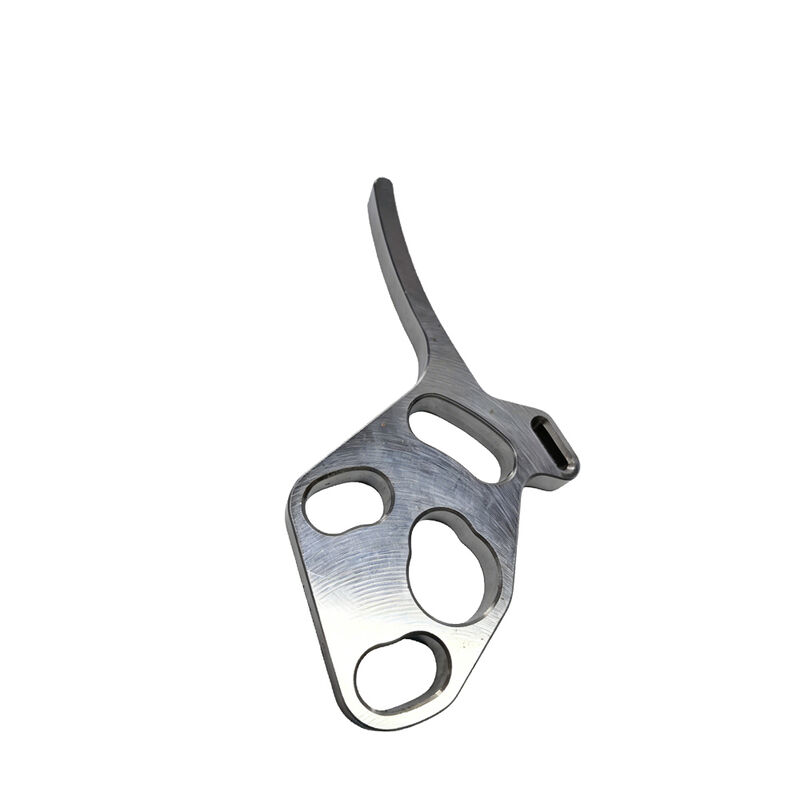

Syris precision-manufactures this contoured aluminum bracket using multi-axis CNC machining, featuring an organic, weight-optimized profile with multiple precision-bored mounting holes engineered for lightweight structural linkage applications.

Key Features:

• Contoured Organic Profile: Sculpted, flowing outer geometry precisely milled to follow load paths, maximizing material efficiency while maintaining structural strength — typical of topology-optimized or aerospace-derived design.
• Multi-Point Bore Pattern: Several precisely bored and reamed mounting holes of varying diameters distributed across the bracket, providing multiple independent attachment or pivot points for linkage integration.
• Slotted End Feature: Elongated slot machined at the narrow end tip, allowing for adjustable positioning, pin engagement, or clearance for a mating fastener.
• Curved Blade-Like Arm: Extended, tapered arm section with a smoothly blended cross-section, providing leverage or offset reach while minimizing weight and material use.
• Fine Machined Surface Finish: Bright, swirl-finished surface across all faces, reflecting tight process control and consistent dimensional accuracy on a complex free-form part.
• Tight Dimensional Tolerances: Critical hole positions and bore diameters held to close tolerances, ensuring accurate, repeatable assembly with mating pins or fasteners.

Manufacturing Capabilities Demonstrated:

• Multi-axis CNC milling of complex organic/free-form profiles
• Precision multi-diameter boring and reaming
• Slot machining for adjustable or pinned connections
• Fine swirl surface finishing
• Weight-optimized structural part fabrication

Applications:
Well-suited for motorsport or aerospace linkage brackets, suspension components, control arm connectors, or lightweight structural mounts requiring multiple precise pivot points in a minimal-weight design.
