CNC Machined Precision Multi Port Valve Manifold Prototype Visualization Model

Syris Precision CNC Machined Multi-Port Valve Manifold (Prototype/Visualization Model)

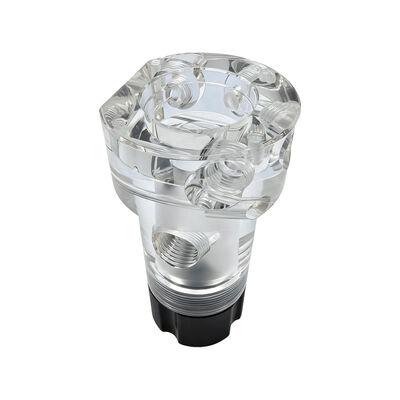

Syris precision-manufactures this multi-port manifold component, shown here in a clear acrylic/prototype visualization finish to clearly illustrate the internal port geometry and threaded connection layout prior to production in metal.

Key Features:

• Faceted Multi-Port Head: Precision-machined polygonal upper body with multiple angled facets, each featuring individually oriented internal threaded ports for compact multi-directional fluid or pneumatic connections.
• Visible Internal Port Detail: The transparent material clearly reveals the internal threaded bore depths, port intersections, and wall thicknesses — useful for design validation, customer review, and tooling planning before final metal production.
• Central Precision Bore: Large, accurately machined central passage running through the port block, serving as the primary flow channel or valve seat interface.
• Externally Threaded Base Collar: Coarse external threading on the lower cylindrical body, providing a secure, torque-driven connection to a mating housing or fitting.
• Precision-Turned Circular Base: Smoothly turned cylindrical transition machined concentric to the upper body for accurate alignment and sealing against a mating surface.
• Design Verification Application: This clear prototype demonstrates Syris's capability to produce visualization/first-article samples for internal port inspection ahead of full production runs in aluminum, stainless steel, or other production-grade materials.

Manufacturing Capabilities Demonstrated:

• Multi-axis CNC milling of complex angled port geometry
• Precision turning for concentric body and thread features
• Multi-port thread machining at varied angles
• Prototype/first-article sample production in transparent material for design validation
• Support for rapid design iteration prior to metal tooling

Applications:
Well-suited for hydraulic/pneumatic valve manifolds, multi-line fluid distribution blocks, or fluid power control components — this transparent version specifically supports engineering review, leak-path visualization, and internal flow verification during the design phase.
