Fine Machined Surface Finish Precision CNC Machined Support Bracket Pair

Precision CNC Machined Support Bracket Pair – Syris Manufacturing

Product Overview

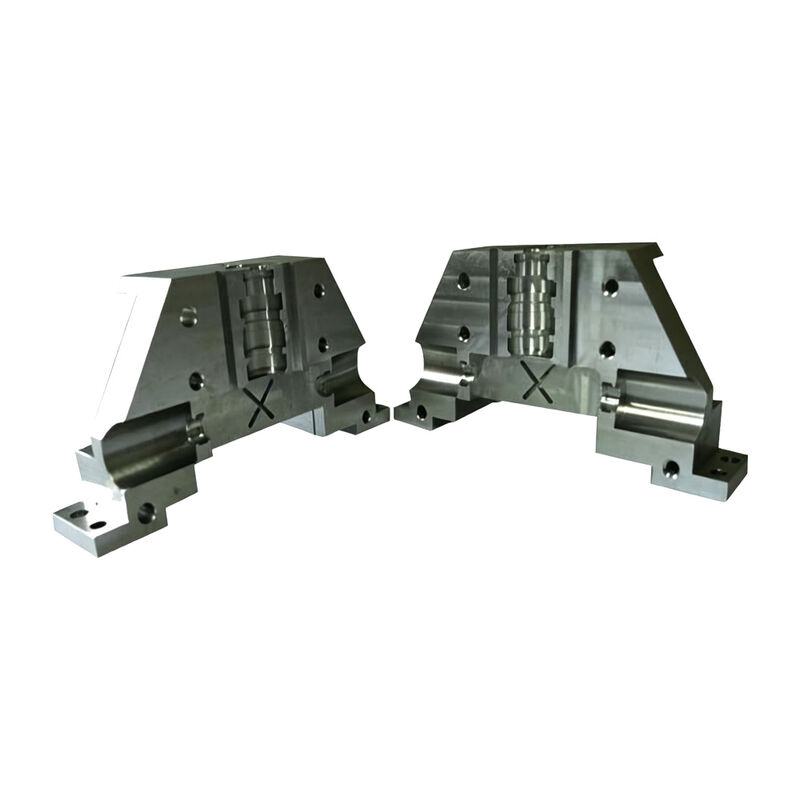

This precision CNC-machined component pair, produced by Syris, consists of a mirrored left/right set of triangular-profile metal support brackets. Each bracket integrates a stepped, multi-tiered base, a machined stub-shaft/roller feature, and a mounting foot with counterbored holes, showcasing complex multi-axis machining on a single monolithic block.

Key Features

• Mirror-Image Pair Design — Manufactured as a matched left/right set, ensuring symmetrical fit and function when assembled into a larger structure or machine frame.
• Integrated Shaft/Roller Feature — A precisely turned stepped shaft is machined directly into the sloped face of each bracket, eliminating the need for a separate press-fit component and improving positional accuracy.
• Multi-Level Stepped Geometry — The tiered, terraced profile reflects extensive multi-axis milling, with each step precisely faced and squared.
• Precision Bore Pattern — Multiple accurately placed through-holes across the sloped and vertical faces allow for secure bolting to mating assemblies.
• Angled Mounting Foot — A right-angle base foot with counterbored mounting holes provides a stable, secure fixation point to a base plate or frame.
• Fine Machined Surface Finish — A bright, uniform metal finish across all faces reflects tight-tolerance milling and turning with minimal post-processing required.

Applications

Suited for precision equipment framing, machine tool sub-assemblies, robotic or automation structural supports, and other applications requiring paired, symmetrical load-bearing brackets with integrated shaft features.

Manufacturing Capability

This part demonstrates Syris's capability in complex multi-axis CNC machining — combining milling, turning, and precision boring on a single component to produce structurally robust, mirror-matched parts ready for direct assembly.
