Black Anodized Finish Precision CNC Machined Enclosure With Complex Internal Cavity

Precision CNC Machined Enclosure with Complex Internal Cavity – Syris Manufacturing

Product Overview

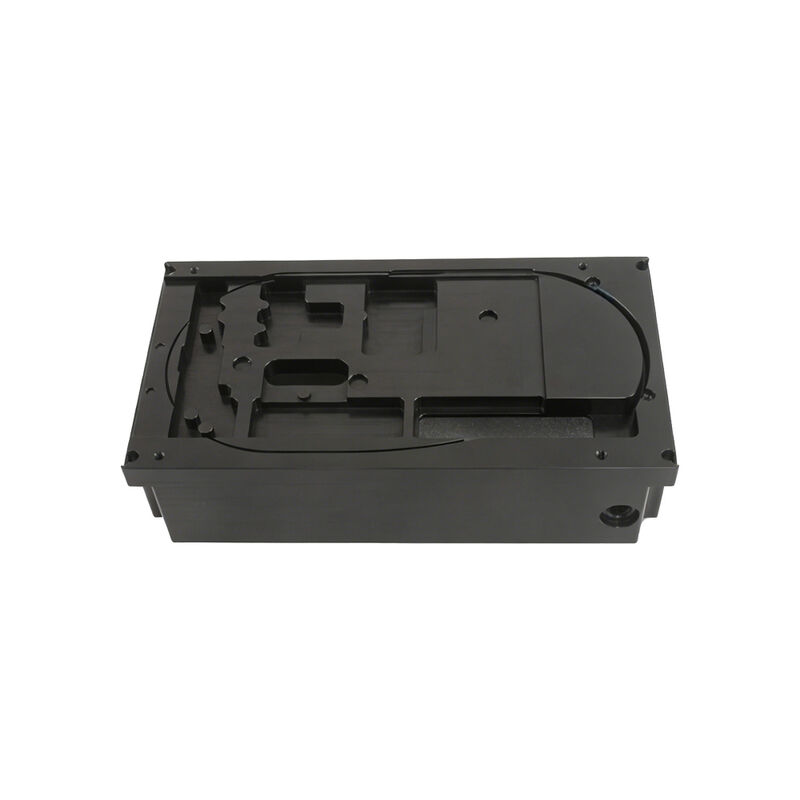

This precision CNC-machined component, produced by Syris, is a black anodized aluminum enclosure base featuring an intricately profiled internal cavity, a routed sealing groove for a gasket or O-ring, and a multi-hole peripheral mounting flange. The part demonstrates Syris's capability in producing complex, multi-level pocket geometries alongside precise sealing and mounting features within a single monolithic housing.

Key Features

• Multi-Level Internal Cavity — A series of stepped, irregularly profiled pockets at varying depths accommodates multiple internal components or sub-assemblies within a single housing, requiring precise multi-axis toolpath control.
• Integrated Sealing Groove — A continuous routed channel follows the cavity perimeter, sized to seat a gasket or O-ring cord for environmental sealing against a mating cover.
• Peripheral Multi-Hole Flange — An evenly spaced array of precision-bored mounting holes around the full perimeter ensures secure, uniform clamping pressure against the mating lid.
• Precision Locating Bosses — Raised machined pads and pilot holes within the cavity provide accurate positioning references for internal component mounting.
• Side-Wall Access Port — A precision-bored circular opening on the housing sidewall allows for cable, connector, or fitting pass-through.
• Black Anodized Finish — A uniform matte-black anodized coating provides corrosion resistance, electrical insulation, and a durable, clean cosmetic appearance.

Applications

Well suited for sealed electronic control unit housings, outdoor or automotive junction boxes, and other applications requiring a weatherproof enclosure with complex internal component layout and reliable gasket sealing.

Manufacturing Capability

This part demonstrates Syris's capability in complex multi-axis CNC milling — combining deep multi-level pocketing, precision groove routing for sealing, and accurate flange drilling to produce environmentally sealed, ready-to-assemble enclosures.
